SmartMeasure-AL

Wzmocnij swoją produkcyję dzięki wysoce zautomatyzowanemu i przyjaznemu dla użytkownika rozwiązaniu firmy Mitutoyo

SmartMeasure-AL

SmartMeasure-AL jest zaawansowanym automatycznym systemem pomiarowym zaprojektowanym do płynnej współpracy z maszynami pomiarowymi Mitutoyo.

Ten innowacyjny system rewolucjonizuje przemysłowe procesy pomiarowe zapewniając precyzję, niezawodność oraz pełną automatyzację.

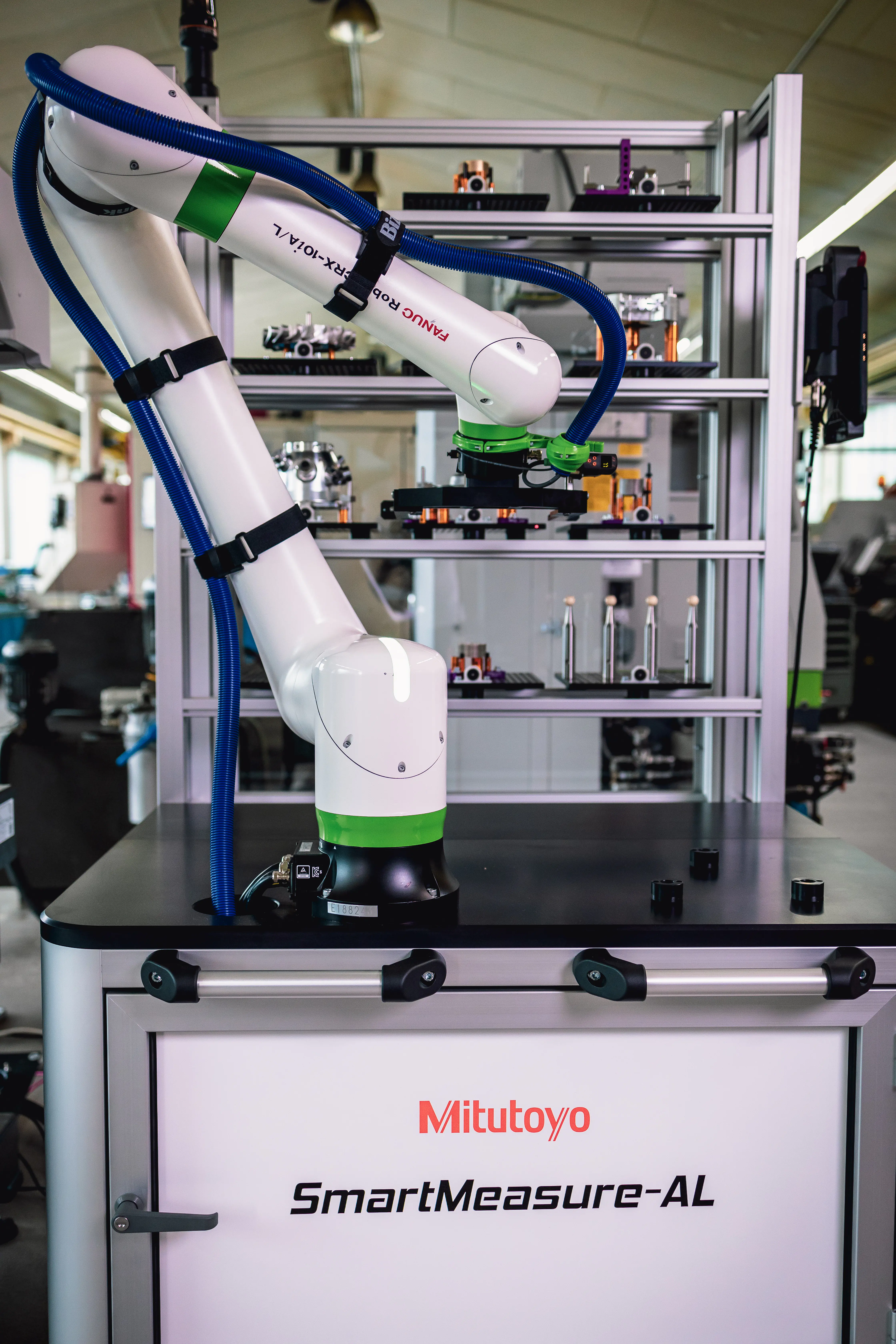

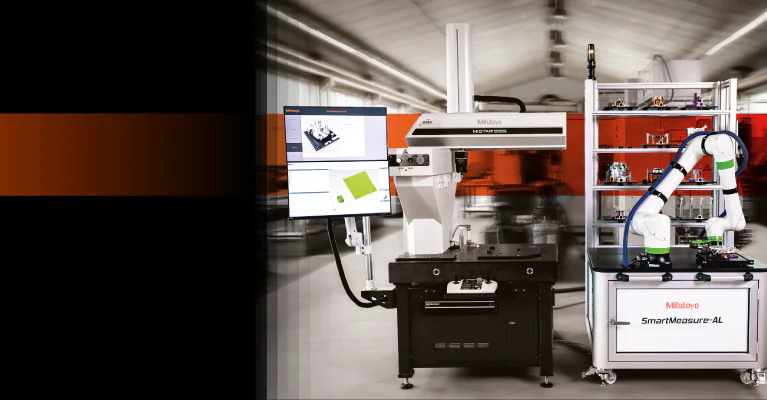

Kompletny system obejmuje regał do pobierania, stację wejścia/wyjścia, system magazynowania, palety systemowe, robota współpracującego oraz maszynę pomiarową Mitutoyo (z komputerem do przetwarzania danych).

Uwaga: Robot oraz maszyna pomiarowa muszą być zakupione oddzielnie.

Rozwiązanie pod klucz

Inteligentna łączność

Konfiguracja modułowa

Działanie 24/7

Features

1. Efficient Measurement: The system allows for 24/7 automatic measurements, boosting efficiency and addressing manpower shortages. The operator simply needs to place the workpiece on up to 12 pallets, configure some measurement parameters, and let the system run autonomously.

2. Easy to Operate: With our Space4Win software and an easy and user-friendly GUI, an operator without knowledge of the system can easily run the whole setup.

3. Result Display: The measurement result is displayed via an indicator light on the HMI (green light for OK, red light for NOT OK).

4. Re-measure: With the help of the user-friendly software, the operator can easily re-measure parts that are NOT OK without having to run the whole sequence again.

5. Program Selection: The part program can be automatically selected by reading the RFID tag mounted on the pallet and by using the RFID reader mounted on the robot gripper.

6. Flexible Configuration: The combination of RFID tag and the part program can be modified simply by editing the settings file.

7. Connectivity: Once measurement is completed, measurement results can be sent to statistical software or even to external software. Moreover, results can be sent directly to CNC machines for tool correction with our Space4Win software.

Modern technology like the RFID and anti-collision sensor makes the SmartMeasure-AL a compact and reliable solution.

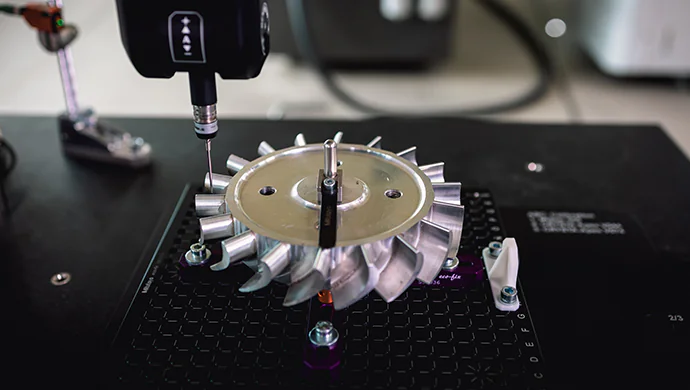

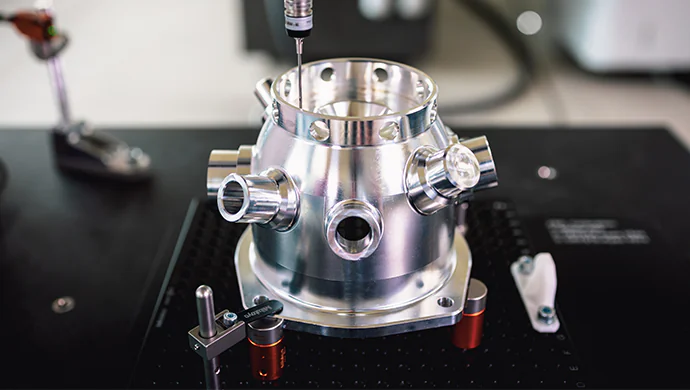

Picture from part fixed to a CMM

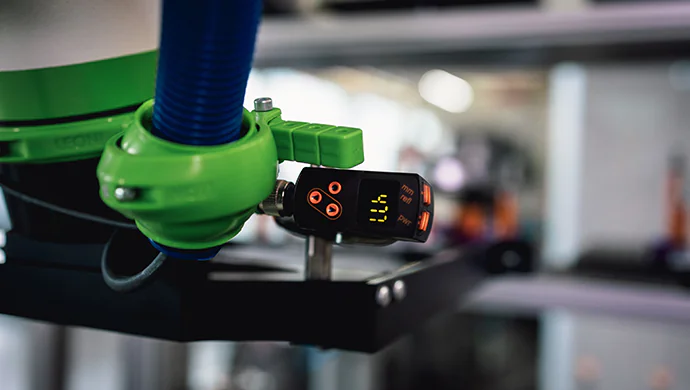

Anti-collision sensor

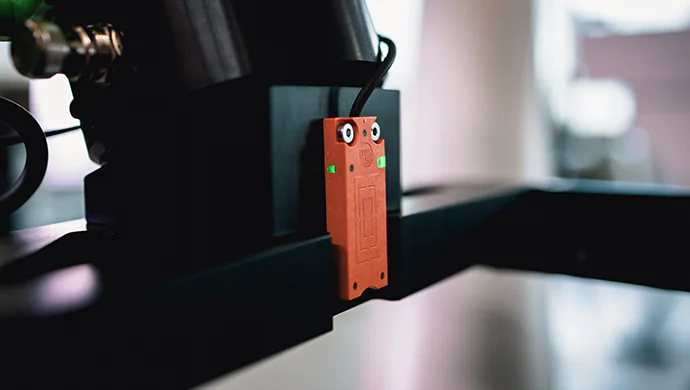

RFID sensor

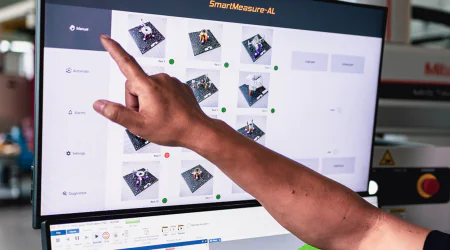

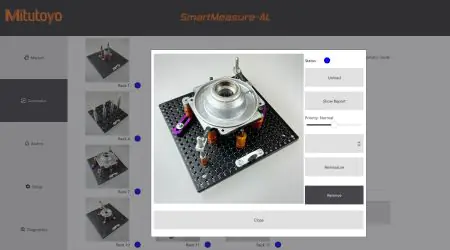

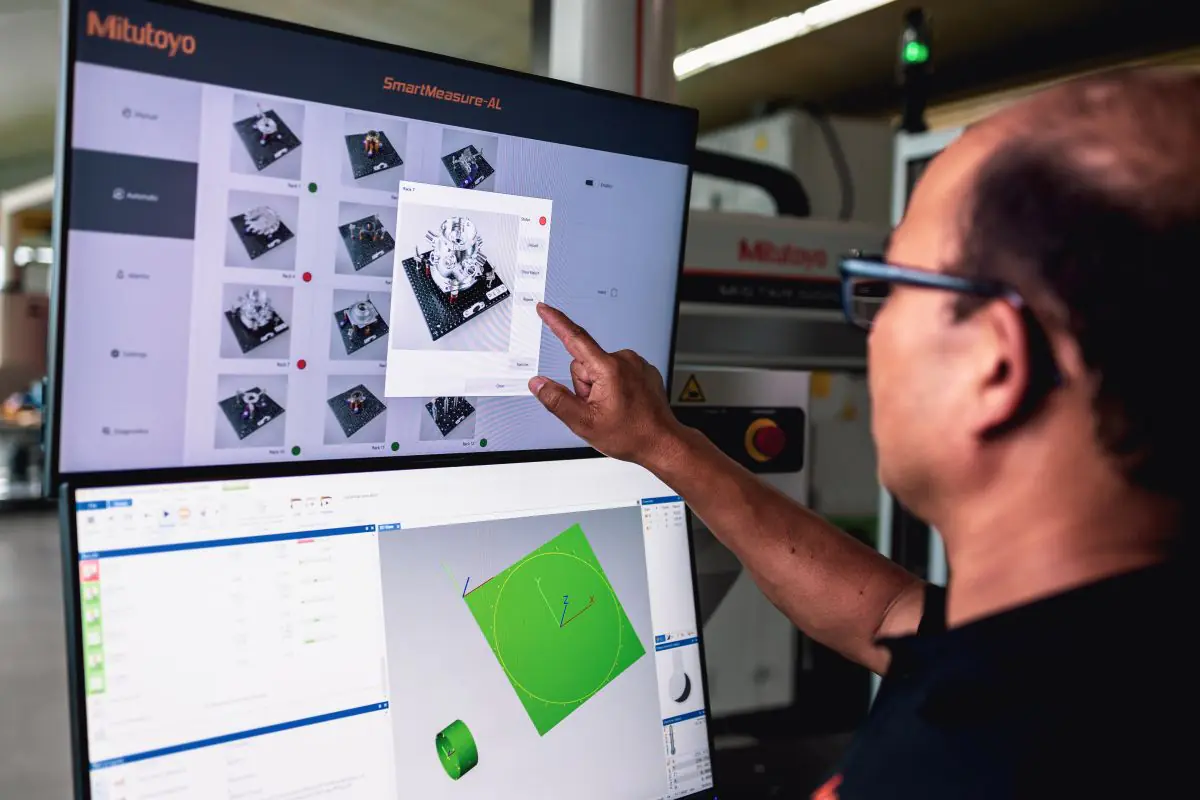

The SmartMeasure-AL is equipped with a state-of-the-art graphical user interface that provides excellent ease of use, via a touchscreen monitor.

EASY TO USE

Eliminate training costs with an intuitive user interface with features like the easy interpretation of the measurement results, part detail images, and graphical setups.

CONNECTIVITY

The Space4Win software, which controls the whole automation setup, connects effortlessly to external devices or software platforms.

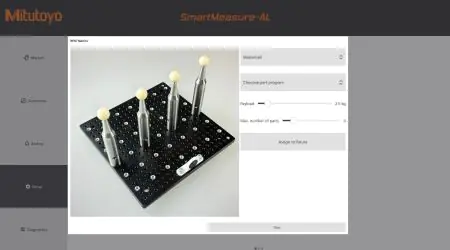

MULTIPLE PART MEASUREMENT

With the SmartMeasure-AL, multiple parts can be mounted on a fixture pallet, thus increasing measurement throughput and productivity.

SUPERIOR SETUP FLEXIBILITY

The setup allows the SmartMeasure-AL to fit a wide variety of application requirements with easy actions.

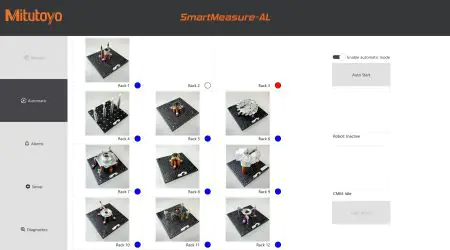

24/7 OPERATION

The SmartMeasure-AL can be operated 24/7 without operator influences, thus increasing productivity and production throughput.

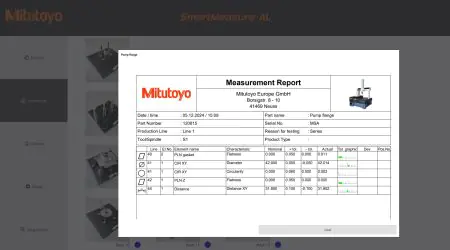

EASY REPORTING

After each operation, measurement reports/results can be outputted to a specified location. Connection to production manufacturing platforms can be also done.

APPLICATION EXAMPLES

The Perfect Solution Regardless of Industry

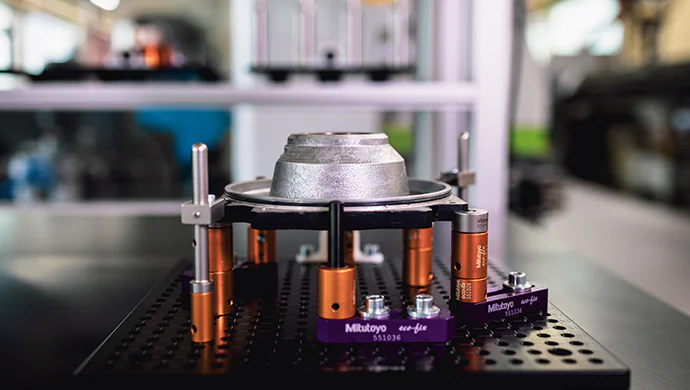

Automotive

Aerospace

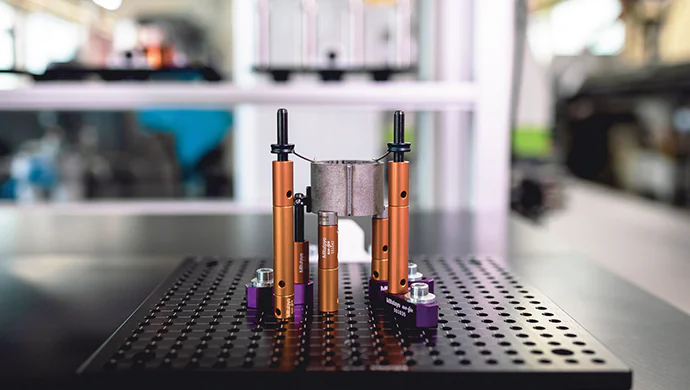

Electric Vehicle

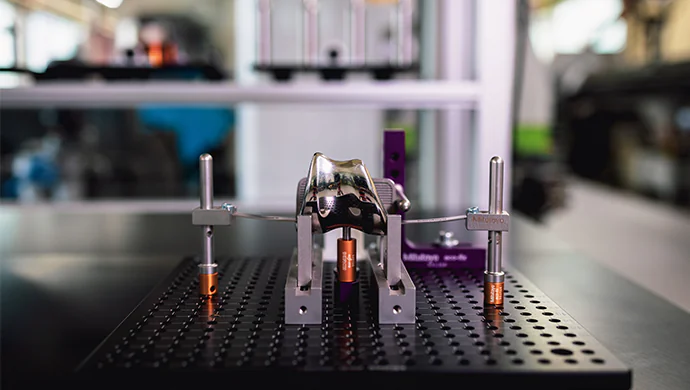

Medical

CONFIGURATION

CMM Configuration

Product Name	Article Number	Remark
MiSTAR 555*	357-305	Probes, styli and software module shall be configured according to application
MiSTAR 575*	357-313	Probes, styli and software module shall be configured according to application
CRYSTA-Apex V544*	191-121	Probes, styli and software module shall be configured according to application
CRYSTA-Apex V574*	191-125	Probes, styli and software module shall be configured according to application
CRYSTA-Apex V776*	191-561	Probes, styli and software module shall be configured according to application
CRYSTA-Apex V7106*	191-565	Probes, styli and software module shall be configured according to application
CRYSTA-Apex V9106*	191-569	Probes, styli and software module shall be configured according to application

*For technical specification of CMM please refer to technical specification sheet

SmartMeasure-AL Configuration

Product Name			Article Number			Remark
SmartMeasure-AL			K543869*			Please refer to specification sheet for detail information

*CMM, CMM accessories and robot need to be ordered separately

Robot Configuration

Technical Specification	Robot
Manufacturer	FANUC	FANUC
Robot type (model)	CRX-10iA/L*	CRX-20iA/L*
Reach	1.418 mm	1.418 mm
Controller type (model)	R-30iB Mini Plus	R-30iB Mini Plus
Limiting operating speed (Note 2)	250 mm/s	250 mm/s
Payload	10 kg	20 kg
Repetitive positioning accuracy	±0.04 mm	±0.04 mm

*Robot needs to be ordered with PROFINET configuration
